esp-matter/examples/sleepy_device

Sleepy device

This example creates a Sleepy device using the ESP Matter data model. Currently it can be only available for ESP32-H2.

See the docs for more information about building and flashing the firmware.

1. Additional Environment Setup

No additional setup is required.

2. Post Commissioning Setup

No additional setup is required.

3. ICD configuration options

The ICD configuration parameters can be configured in menuconfig.

# Enable ICD server
CONFIG_ENABLE_ICD_SERVER=y
# ICD Active mode interval(ms)
CONFIG_ICD_ACTIVE_MODE_INTERVAL_MS=1000
# ICD Active mode threshold(ms)
CONFIG_ICD_ACTIVE_MODE_THRESHOLD_MS=1000
# ICD Idle mode interval(s)
CONFIG_ICD_IDLE_MODE_INTERVAL_SEC=60
# ICD Fast Poll interval(ms)
CONFIG_ICD_FAST_POLL_INTERVAL_MS=500
# ICD Slow Poll interval(ms)
CONFIG_ICD_SLOW_POLL_INTERVAL_MS=5000

4. Power usage

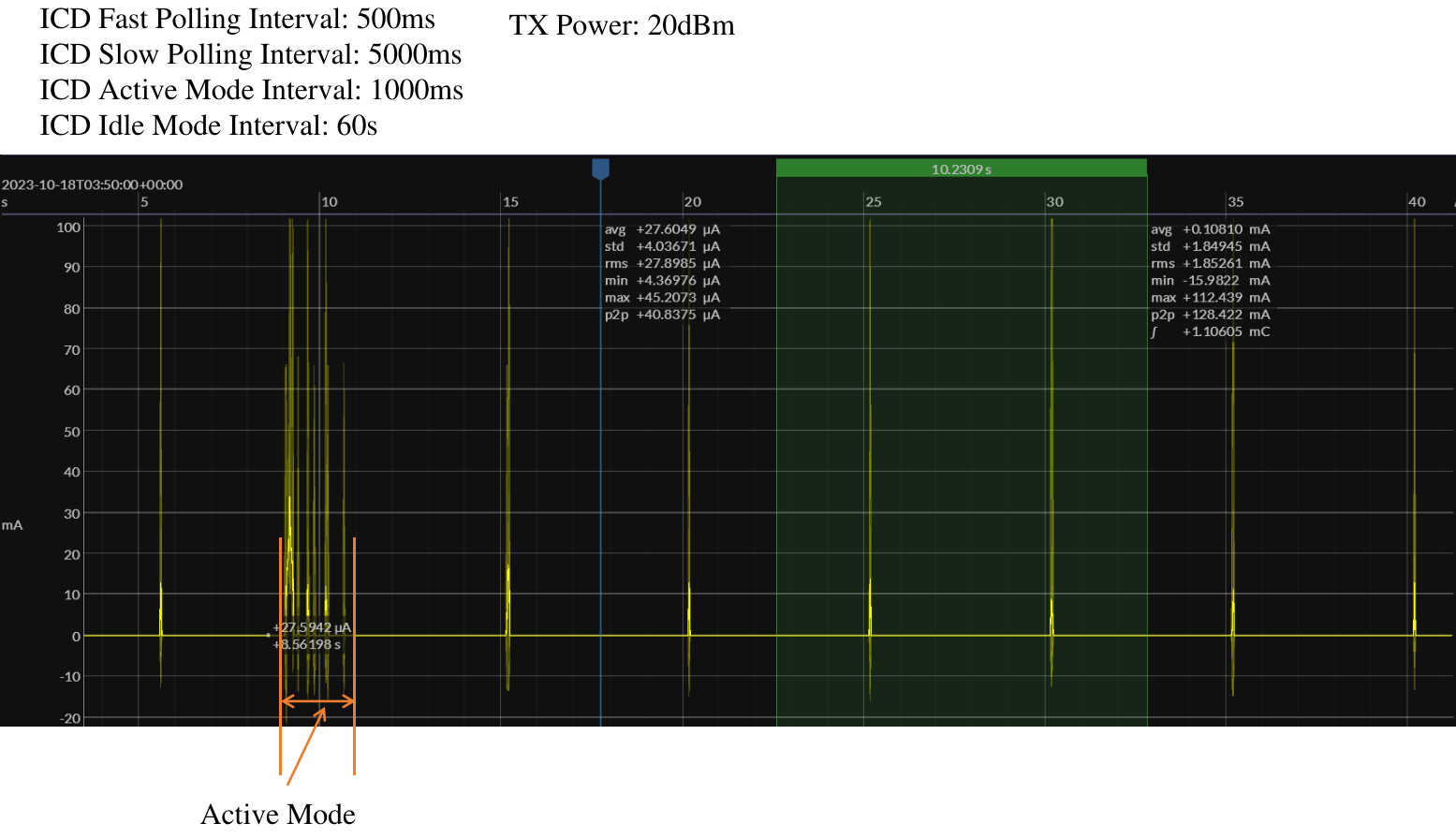

The power usage will be various for different configuration parameters of ICD server. Below is an example current wave figure for ESP32-H2 Devkit-C. The ICD configurations and radio TX power are also on the picture.
